Specifications

Product Contents and Appearance​

The WhizToys Active Mat Gaming Platform includes the following standard accessories:

  • Active Mats: The number of tiles depends on the purchased package.
  • Bluetooth Control Box: Includes 1 adapter set.
  • USB Power Adapter: 1 unit.
  • Push-pin Tool: 1 piece.

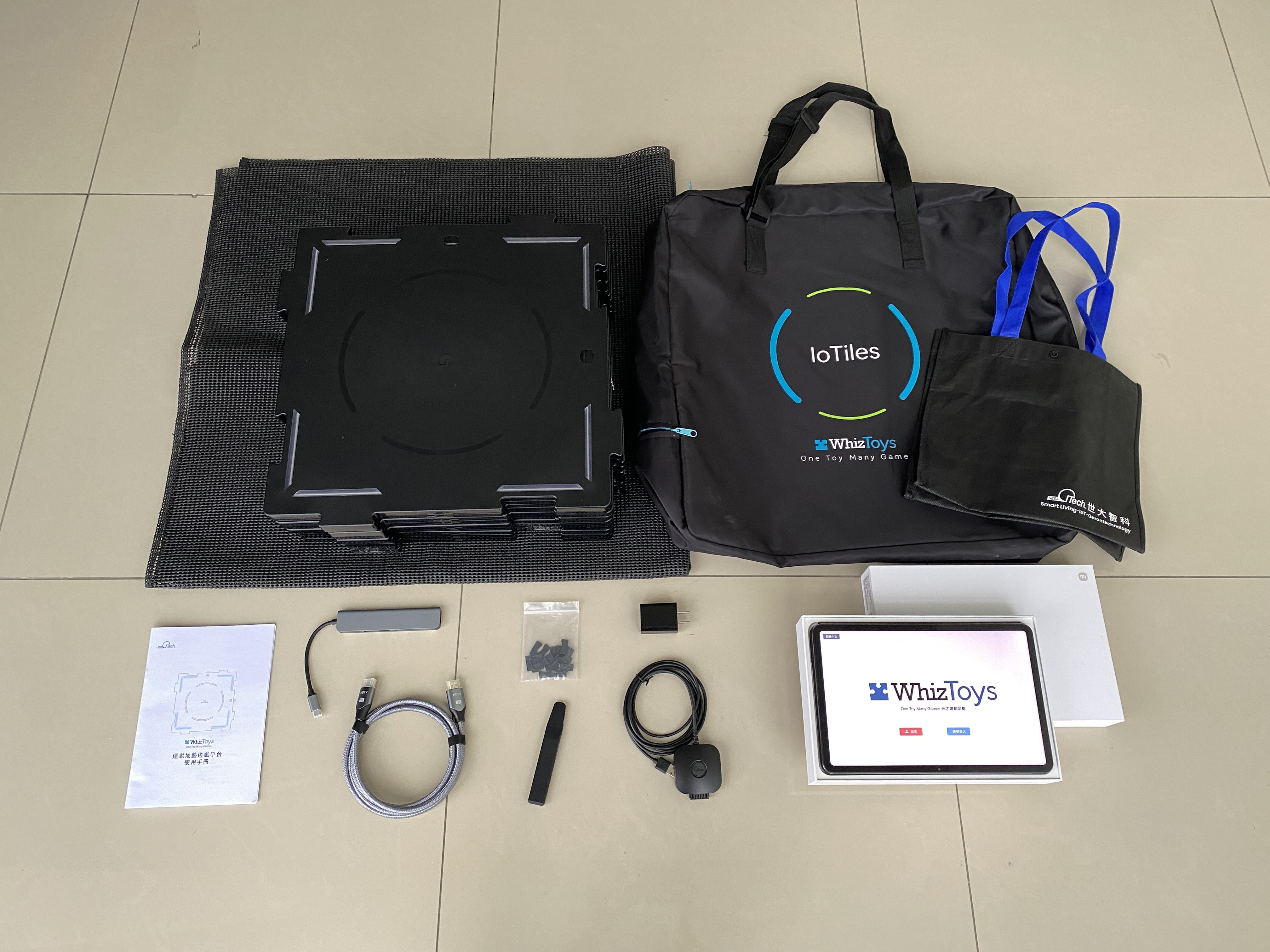

Product accessories

Technical Specifications​

  • Single Tile Dimensions: 430L x 430W x 12.5H (mm).
  • Single Tile Weight: 1.25 kg.
  • Weight Capacity: Over 150 kg for adults.
  • Water Resistance Rating: IP44.
  • Sensor: Force-Sensitive Resistor (FSR).

Pre-Installation Notes​

Before assembling the tiles, please ensure:

  1. There is enough space to lay out the mats and cables.
  2. The floor surface is hard and level to prevent connector misalignment, which may cause poor sensor response.
  3. There is a suitable power outlet nearby.
